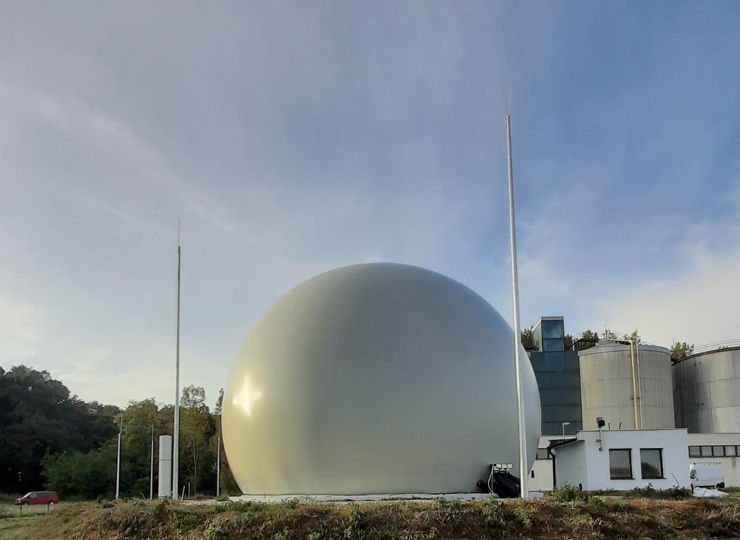

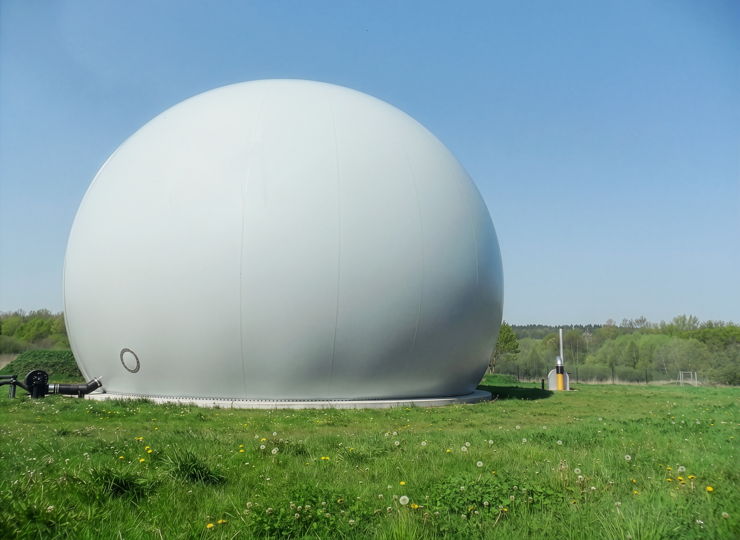

Ground / double membrane storage
Modern alternative
Our ground / double membrane gas storage tanks are a modern alternative without conventional slurry storage tanks as a foundation. Flexible with regard to assembly, we can easily adapt to your system - whether floor slab, ring foundation or concrete ceiling. As standard version, they are mounted in a stainless steel flat profile, however, other options are also possible.
3/4 spere, round, square, oval - shape and volume are individually selected. Rely on flexible, modern and future-oriented gas storage with our innovative double membrane gas storage tank.
Specifications
| Material | Weather protection membrane made of PVC-coated polyester fabric |
| Gas storage membrane made of PELD or FPP | |
| Floor seal made of PELD or FPP | |
| Type of construction | Spherical shape with upstand if necessary |
| Size | 3/4 sphere, round, rectangular or custom shapes on request |
| Volume | 10 - 20,000 m³, other volumes possible depending on shape |
| Operating pressure | +3 mbar / -1.0 mbar (standard version) |
| or project-specific depending on plant operation, location and shape | |
| Mounting types | Clamp hose system, double flat profile |
| Standard colours | RAL 6026 opal green / RAL 6005 moss green / RAL 7038 agate grey / |
| RAL 7037 dust grey / RAL 7035 light grey / special colours on request | |
| Membrane properties | High tear resistance as well as resistance to H₂S/VOC, manure, |
| UV and weather conditions, flame-retardant (B1) | |
| Additional options | Version with special membrane to reduce odours |
| Gas storage membrane suitable for biowaste and food waste | |
| Belt tensioning system for increased pressure and wind stability | |
| TRAS120 compliant |
A doubleOur double membrane gas storage tank is a flexible gas storage system with two independent membranes. The inner membrane stores the gas, while the outer membrane is stabilised by the supporting air pressure and provides weather protection.
The air-filled space between the membranes provides the necessary stability so that safe and adaptable gas storage is granted.
Rely on us for everything you need: from preliminary advise, sales, planning and customisation of the membrane up to the final installation ready for acceptance.
Advantages
- Gas storage membranes for biowaste and food waste: Resistant to oils, long-chain hydrocarbons, high emission and odour density, without H2S limit value.
- Pre-assembled ground membrane with integration of condensate drain and gas extraction lines during installation, laid on a ground fleece in order to protect the groundmembrane
- Metal components are made of stainless steel
