Double membrane gas storage
The innovative solution for biogas plants
Double membrane gas holders offer an innovative solution for the safe and efficient storage of biogas.
A double membrane gas holder is a flexible gas storage system consisting of two separate membranes. The inner membrane stores the gas, while the outer membrane is stabilised by the supporting air pressure and provides weather protection. The air-filled space in between provides the necessary stability, enabling safe and adaptable gas storage.
Specifications
| Material | Weather protection membrane made of PVC-coated polyester fabric |
| Gas storage membrane made of PELD and FPP | |
| Type of construction | Cone shape or spherical cap shape |
| Size in Ø | 10 - 40m / other tank sizes and special shapes on request |
| Tank volume | Volume table |
| Operating pressure | +2 - 3 mbar / -1.0 mbar (standard version) higher pressures possible on request |
| Mounting types | Stainless steel U-profile with clamping hose system or double flat profile |
| Substructure | Belt / mesh substructure decoupled from fastening |
| Standard colours | RAL6026 opal green / RAL 6005 moss green / RAL 7038 agate grey / |
| RAL 7037 dust grey / RAL 7035 light grey / special colours on request | |
| Further specifications | Slurry-resistant material, high tear resistance, |
| TRAS120 compliant components | |
| Special features | additional heat protection film, |
| Version with special membrane for odour reduction | |
| Belt tensioning system over weather protection membrane for even pressure distribution and stability | |
| Version with barrier layer to reduce odours, | |
| Replacement foils available for own systems and third-party systems, | |
| all assemblies can be easily replaced separately |

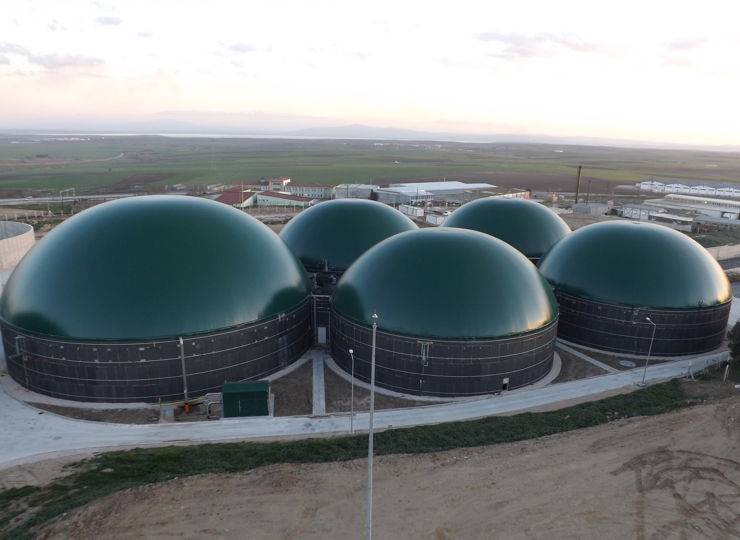

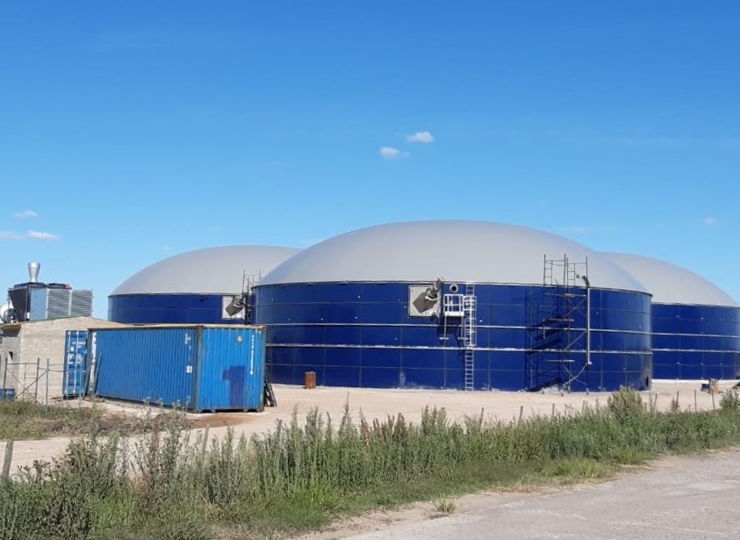

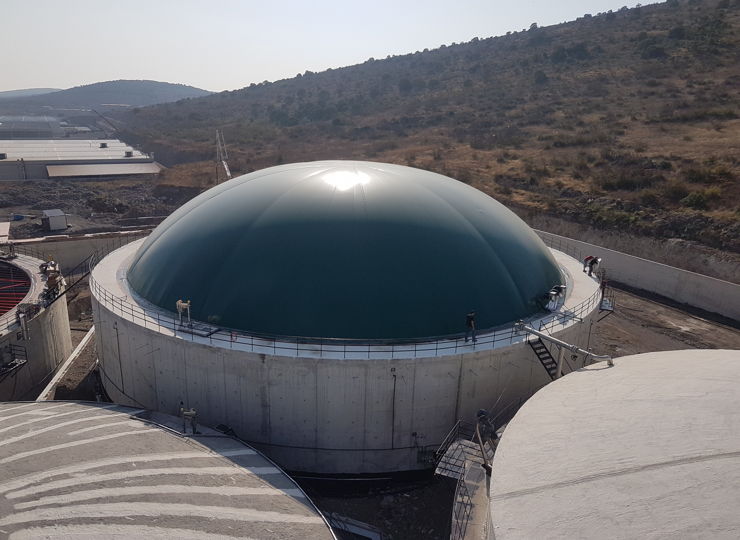

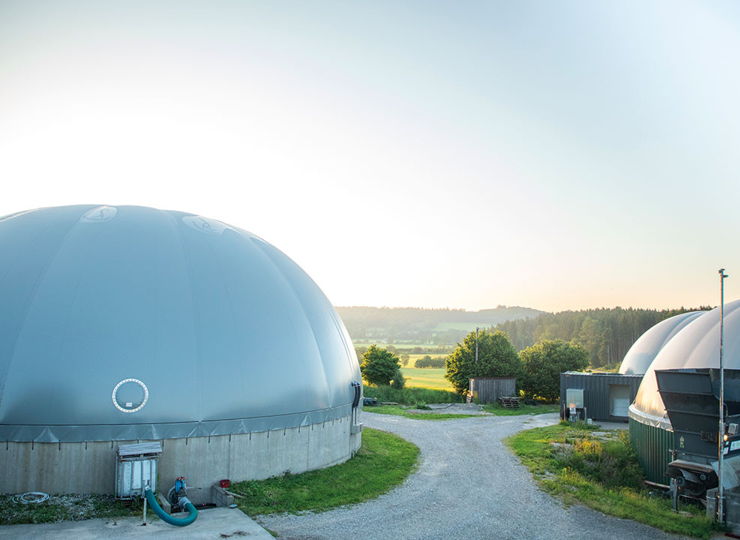

Gas storage tanks with double membrane
Whether installed on in-situ concrete, prefabricated or steel tanks or as floor storage tanks, our double membrane gas storage tanks offer maximum flexibility and adaptability. They can be customised in terms of shape, design and colour to suit your requirements and wishes.
We offer two different standard fastening systems: the stainless steel U-profile with clamping hose system and the stainless steel double flat profile for installation on or at the side of the wall crown.
Advantages
- High quality standard of the double membrane gas storage tanks
- Sustainable thanks to recyclable FPP and PE material for the gas storage foil
- Consideration of the conditions on site and sensible utilisation of existing components
